CXD2302Q Datasheet, Function, Sony Corporation

CXD2302Q Features

  • Function
  • Resolution: 8 bit ± 1/2LSB (DL)
  • Maximum sampling frequency: 50MSPS
  • Low power consumption: 125mW (at 50MSPS typ.) (reference current excluded)
  • Syn

PDF File Details

Part number:

CXD2302Q

Manufacturer:

Sony Corporation

File Size:

344.07kb

Download:

📄 Datasheet

Description:

8-bit 50msps video a/d converter with clamp function. The CXD2302Q is an 8-bit CMOS A/D converter for video with synchronizing clamp function. The adoption of 2 step-parallel method achie

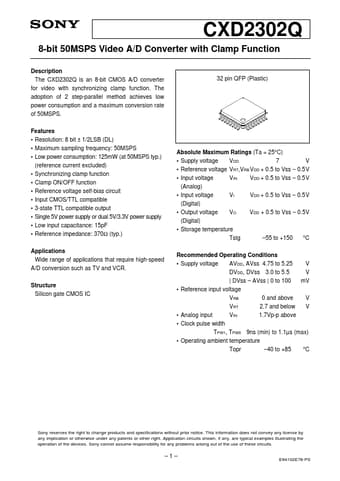

Datasheet Preview: CXD2302Q 📥 Download PDF (344.07kb)
Page 2 of CXD2302Q Page 3 of CXD2302Q

CXD2302Q Application

  • Applications Wide range of applications that require high-speed A/D conversion such as TV and VCR. Structure Silicon gate CMOS IC 32 pin QFP (Plasti
