CXD2306Q

10-bit 80MSPS 1ch D/A Converter

CXD2306Q Features

* 10-bit resolution

* Maximum conversion rate 80MSPS

* Differential linearity error ±0.5 LSB

* Low power consumption 150 mW(max.) (When 80MSPS 200 Ω load, 2 Vp-p is output)

* Single 5 V power supply

* Built-in independent constant-voltage source

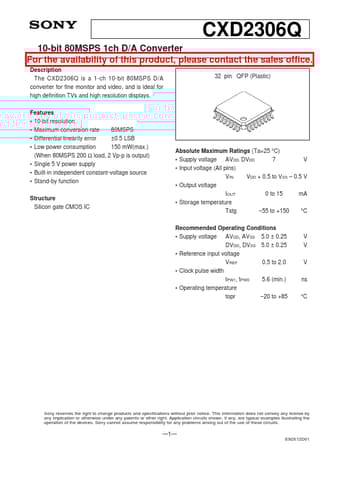

CXD2306Q Datasheet (215.88 KB)

Preview of CXD2306Q PDF

Datasheet Details

Part number:

CXD2306Q

Manufacturer:

Sony Corporation

File Size:

215.88 KB

Description:

10-bit 80msps 1ch d/a converter.
