CXD2303AQ Datasheet, Function, Sony Corporation

CXD2303AQ Features

  • Function
  • Resolution : 8 bit±1/2 LSB (DL)
  • Maximum sampling frequency : 50 MSPS
  • Low power consumption : 400 mW (at 50 MSPS Typ.) (Reference current excluded)

PDF File Details

Part number:

CXD2303AQ

Manufacturer:

Sony Corporation

File Size:

501.97kb

Download:

📄 Datasheet

Description:

8-bit 3-channel 50 msps video a/d converter with clamp function. The CXD2303AQ is an 8-bit 3-channel CMOS A/D converter for video with synchronizing digital clamp function. The adoption of 2 step-pa

Datasheet Preview: CXD2303AQ 📥 Download PDF (501.97kb)

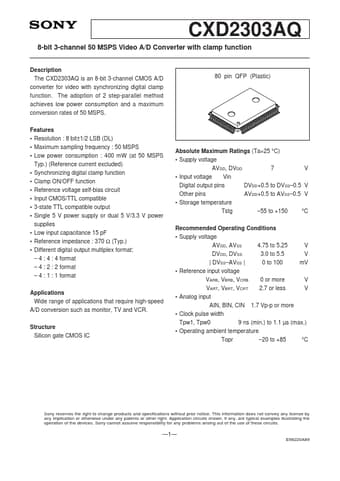

Page 2 of CXD2303AQ Page 3 of CXD2303AQ

CXD2303AQ Application

  • Applications Wide range of applications that require high-speed A/D conversion such as monitor, TV and VCR. Structure Silicon gate CMOS IC 80 pin QF
