CXD2304R

8-bit 20 MSPS RGB 3-Channel D/A Converter

CXD2304R Features

* Resolution 8-bit

* Maximum conversion speed 20 MSPS

* RGB 3-channel input/output

* Differential linearity error ±0.5 LSB

* Low power consumption 50 mW (330 Ω load at 1.2 Vp-p output)

* Single 3.3 V power supply

* Low glitch noise

* St

CXD2304R Datasheet (249.92 KB)

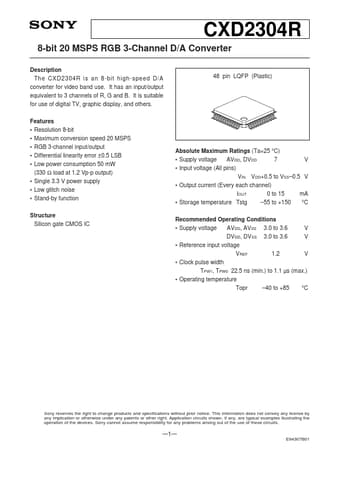

Preview of CXD2304R PDF

Datasheet Details

Part number:

CXD2304R

Manufacturer:

Sony Corporation

File Size:

249.92 KB

Description:

8-bit 20 msps rgb 3-channel d/a converter.
