THC63LVDM63A (THC63LVDF64A / THC63LVDM63A) LVDS 18-Bit Color Host-LCD Panel Interface Receiver

The THC63LVDM63A transmitter converts 21 bits of CMOS/TTL data into LVDS(Low Voltage Differential Signaling) data stream. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. The THC63LVDM63A can be programmed for rising edge or falling edge clocks .

THC63LVDM63A Features

* 21:3 Data channel compression at up to 223 Megabytes per sec throughput Wide Frequency Range: 20 - 85 MHz suited for VGA,SVGA,XGA and SXGA Narrow bus (8 lines) reduces cable size 345mV swing LVDS devices for Low EMI Supports Spread Spectrum Clock Generator On chip Input Jitter Filtering PLL requires

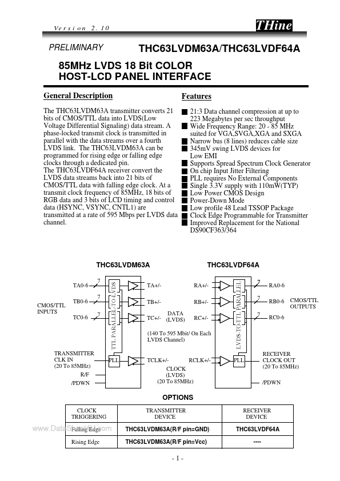

THC63LVDF64A_THineElectronics.pdf

THC63LVDM63A Datasheet Preview — This datasheet PDF includes multiple part numbers: THC63LVDM63A, THC63LVDF64A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

THC63LVDM63A, THC63LVDF64A

Manufacturer:

THine Electronics

File Size:

75.96 KB

Description:

(thc63lvdf64a / thc63lvdm63a) lvds 18-bit color host-lcd panel interface receiver.

Note:

This datasheet PDF includes multiple part numbers: THC63LVDM63A, THC63LVDF64A.
Please refer to the document for exact specifications by model.
