THC63LVDM83C REDUCED SWING LVDS 24Bit COLOR HOST-LCD PANEL INTERFACE

The THC63LVDM83C(5S) transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to SXGA+ resolutions. The THC63LVDM83C(5S) converts 28bits of CMOS/ TTL data into LVDS(Low Voltage Differential Signaling) data stream. The transmitter can be programmed f.

THC63LVDM83C Features

* Wide dot clock range: 8-85MHz suited for NTSC, VGA, SVGA, XGA

* PLL requires no external components

* Supports spread spectrum clock generator

* On chip jitter filtering

* Clock edge selectable

* Supports reduced swing LVDS for low EMI

* Powe

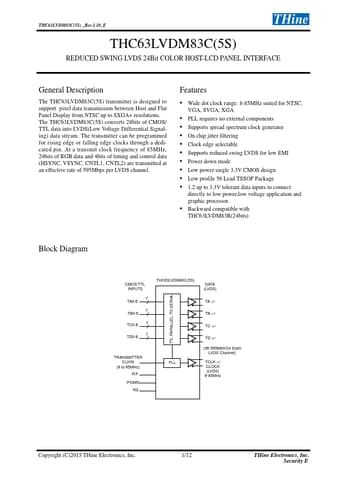

THC63LVDM83C-THineElectronics.pdf

THC63LVDM83C Datasheet Preview — Preview of THC63LVDM83C PDF

Datasheet Details

Part number:

THC63LVDM83C

Manufacturer:

THine Electronics

File Size:

111.36 KB

Description:

Reduced swing lvds 24bit color host-lcd panel interface.
