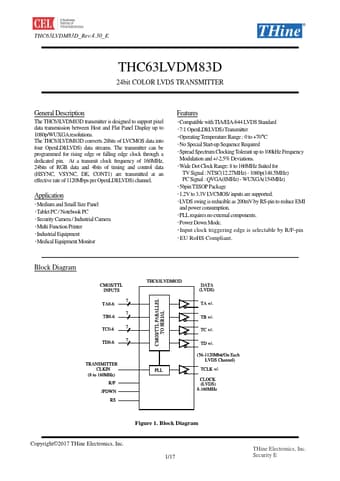

THC63LVDM83D - 24bit COLOR LVDS TRANSMITTER

THine Electronics

Datasheet Details

Part number	THC63LVDM83D
Manufacturer	THine Electronics
File Size	437.05 KB
Description	24bit COLOR LVDS TRANSMITTER
Datasheet	THC63LVDM83D-THineElectronics.pdf

The THC63LVDM83D transmitter is designed to support pixel data transmission between Host and Flat Panel Display up to 1080p/WUXGA resolutions.

･Compatible with TIA/EIA-644 LVDS Standard ･7:1 OpenLDI(LVDS) Transmitter ･Operating Temperature Range : 0 to +70C ･No Special Start-up Sequence Required ･Spread Spectrum Clocking Tolerant up to 100kHz Frequency Modulation and +/-2.5% Deviations. ･Wide Dot Clock Range: 8 to 160MHz Suited for TV Signal : NTSC(12.27MHz) - 1080p(148.5MHz) PC Signal : QVGA(8MHz) - WUXGA(154MHz) ･56pin TSSOP Package ･1.2V to 3.3V LVCMOS/ inputs are supported. ･LVDS swing is reducible as 200mV by RS-pin to reduce EMI.
