THC63LVDM63R (THC63LVDM63R / THC63LVDM83R) Reduced Swing LVDS 24-Bit / 18-Bit Color Host LCD Panel Interface

The THC63LVDM83R transmitter converts 28bits of CMOS/TTL data into LVDS (Low Voltage Differential Signaling) data stream. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. At a transmit clock frequency of 85MHz, 28bits of RGB data and 4bits of LCD.

THC63LVDM63R Features

* 28:4 Data channel compression at up to 298 Megabytes per sec throughput

* Wide dot clock range: 20-85MHz suited for VGA,

* Support Reduced swing LVDS for Low EMI

* 200mV swing LVDS/350mV swing LVDS

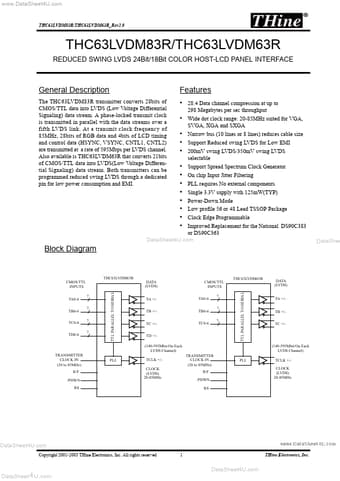

THC63LVDM83R_THineElectronics.pdf

THC63LVDM63R Datasheet Preview — This datasheet PDF includes multiple part numbers: THC63LVDM63R, THC63LVDM83R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

THC63LVDM63R, THC63LVDM83R

Manufacturer:

THine Electronics

File Size:

415.86 KB

Description:

(thc63lvdm63r / thc63lvdm83r) reduced swing lvds 24-bit / 18-bit color host lcd panel interface.

Note:

This datasheet PDF includes multiple part numbers: THC63LVDM63R, THC63LVDM83R.
Please refer to the document for exact specifications by model.
