TPNA1212S, TPNA0505S, 1W 3KVDC Isolated Dual Output DC/DC Converters

TPNA Series .
1W 3KVDC Isolated Dual Output DC/DC Converters The TPNA series are miniature, isolated 1W DC/DC converters in a SIP package.

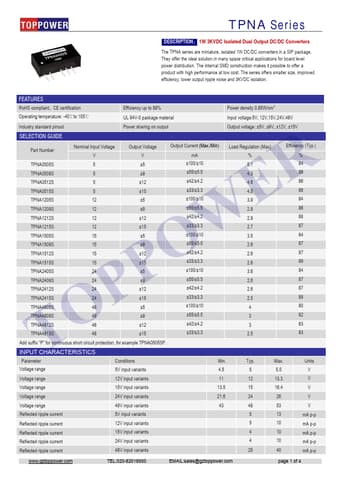

datasheet Preview Page 1 from Datasheet4u.com

TPNA0505S-TOPPOWER.pdf

TPNA1212S Datasheet Preview — This datasheet PDF includes multiple part numbers: TPNA1212S, TPNA0505S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPNA1212S, TPNA0505S

Manufacturer:

TOPPOWER

File Size:

613.51 KB

Description:

1W 3KVDC Isolated Dual Output DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: TPNA1212S, TPNA0505S.
Please refer to the document for exact specifications by model.

Features

* RoHS compliant、CE certification Operating temperature: -40℃to 105℃ Efficiency up to 89% UL 94V-0 package material Power density 0.85W/cm3 Input voltage:5V, 12V,15V,24V,48V Industry standard pinout Power sharing on output Output voltage: ±5V, ±9V, ±12V, ±15V SELECTION GUIDE Part Number Nomina
