TPN1110ENH - Silicon N-channel MOSFET

Toshiba

📥 Download Datasheet

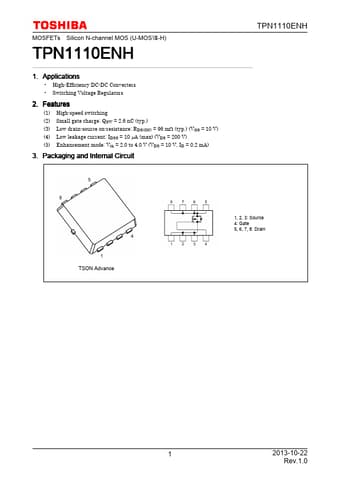

TPN1110ENH Datasheet Preview — Preview of TPN1110ENH PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPN1110ENH
Manufacturer	Toshiba ↗
File Size	233.37 KB
Description	Silicon N-channel MOSFET
Datasheet	TPN1110ENH-Toshiba.pdf

TPN1110ENH Product details

Features

(1) High-speed switching (2) Small gate charge: QSW = 2.6 nC (typ. ) (3) Low drain-source on-resistance: RDS(ON) = 96 mΩ (typ. ) (VGS = 10 V) (4) Low leakage current: IDSS = 10 µA (max) (VDS = 200 V) (5) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 0.2 mA) 3. Packaging and Internal Circuit TPN1110ENH TSON Advance 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain 1 2013-10-22 Rev.1.0 TPN1110ENH 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Symbo.
