1SS301 Datasheet - Toshiba Semiconductor

1SS301 Silicon Epitaxial Planar Type Diode

TOSHIBA Diode Silicon Epitaxial Planar Type 1SS301 Ultra High Speed Switching Application 1SS301 Unit: mm AEC-Q101 Qualified (Note1) Small package : SC-70 Low forward voltage : VF (3) = 0.90 V (typ.) Fast reverse recovery time : trr = 1.6 ns (typ.) Small total capacitance : CT = 0.9 pF (typ.) Note1: For detail information, please contact our sales. Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Maximum (peak) reverse voltage V.

1SS301_ToshibaSemiconductor.pdf

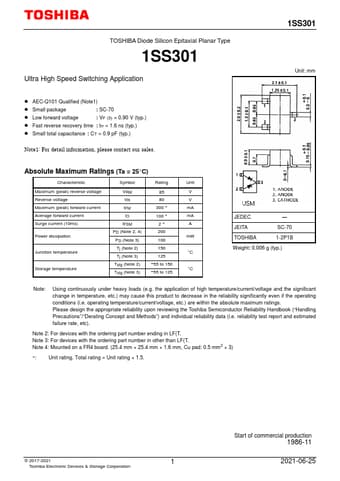

Preview of 1SS301 PDF
1SS301 Datasheet Preview Page 2 1SS301 Datasheet Preview Page 3

Datasheet Details

Part number:

1SS301

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

418.31 KB

Description:

Silicon epitaxial planar type diode.
