1SS397 Datasheet - Toshiba Semiconductor

1SS397 Silicon Epitaxial Planar Type Diode

TOSHIBA Diode Silicon Epitaxial Planar Type 1SS397 High Voltage, High Speed Switching Applications 1SS397 Unit: mm Small package : SC-70 Low forward voltage : VF = 1.0 V (typ.) High voltage : VR = 400 V (min) Fast reverse recovery time : trr = 0.5 μs (typ.) Small total capacitance : CT = 2.5 pF (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Maximum (peak) reverse Voltage VRM 420 V Reverse voltage VR 400 V Maximum.

1SS397 Datasheet (615.66 KB)

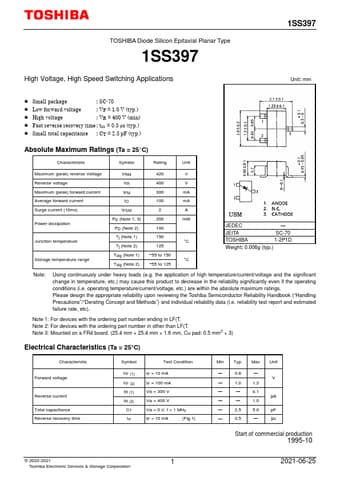

Preview of 1SS397 PDF

Datasheet Details

Part number:

1SS397

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

615.66 KB

Description:

Silicon epitaxial planar type diode.
