2SA1891 Datasheet - Toshiba Semiconductor

2SA1891 Silicon PNP Epitaxial Type Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1891 Power Amplifier Applications Power Switching Applications 2SA1891 Unit: mm Low collector-emitter saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A) High collector power dissipation: PC = 1.3 W (Ta = 25 °C) High-speed switching time: tstg = 300 ns (typ.) Complementary to 2SC5028 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-b.

2SA1891_ToshibaSemiconductor.pdf

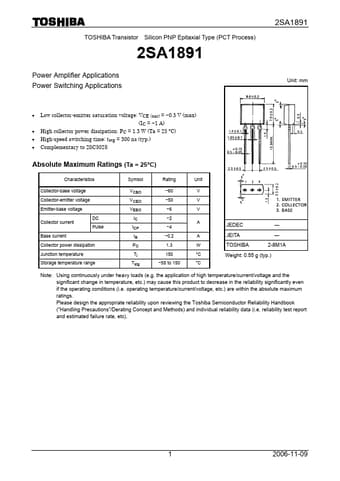

Preview of 2SA1891 PDF
2SA1891 Datasheet Preview Page 2 2SA1891 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1891

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

144.44 KB

Description:

Silicon pnp epitaxial type transistor.
