2SA1893 Datasheet - Toshiba Semiconductor

2SA1893 Silicon PNP Epitaxial Type Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1893 Strobe Flash Applications Audio Power Amplifier Applications 2SA1893 Unit: mm hFE(1) = 100 to 320 (VCE = 2 V, IC = 0.5 A) hFE(2) = 70 (min) (VCE = 2 V, IC = 4 A) Low saturation voltage: VCE (sat) = 1.0 V (max) (IC = 4 V, IB = 0.1 A) High-power dissipation: PC = 1.3 W Absolute Maximum Ratings (Ta = 25°C) Characteristics Sym.

2SA1893_ToshibaSemiconductor.pdf

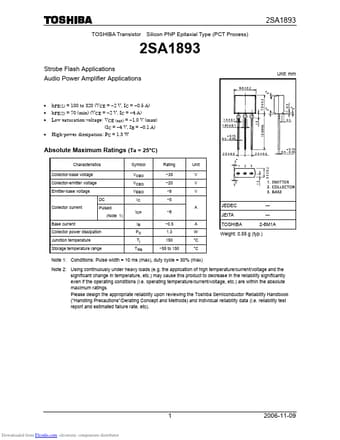

Preview of 2SA1893 PDF
2SA1893 Datasheet Preview Page 2 2SA1893 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1893

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

149.11 KB

Description:

Silicon pnp epitaxial type transistor.
