2SA1896 - PNP Epitaxial Planar Silicon Transistor

2SA1896 Description

Ordering number:4718A PNP Epitaxial Planar Silicon Transistor 2SA1896 DC/DC Converter, Motor Driver Applications .

2SA1896 Features

* Adoption of FBET processes.
* Large current capacity.
* Low collector-to-emitter saturation voltage.
* Small size making it easy to provide high-density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SA1896] Specifications Absolute Maximum Ratings at Ta = 25˚C Para

📥 Download Datasheet

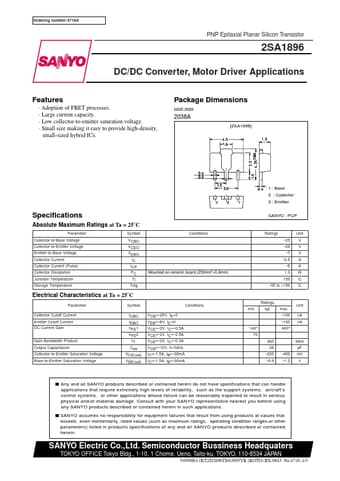

Preview of 2SA1896 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1896
Manufacturer
Sanyo Semicon Device
File Size
83.99 KB
Datasheet
2SA1896_SanyoSemiconDevice.pdf
Description
PNP Epitaxial Planar Silicon Transistor
