2SC5720 NPN TRANSISTOR

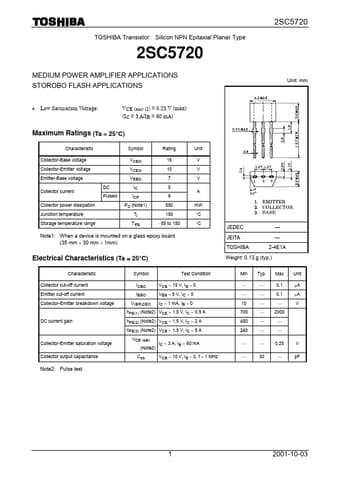

2SC5720 TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5720 MEDIUM POWER AMPLIFIER APPLICATIONS STOROBO FLASH APPLICATIONS Low Saturation Voltage: VCE (sat) (1) = 0.25 V (max) (IC = 3 A/IB = 60 mA) Unit: mm Maximum Ratings (Ta = 25°C) Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector power dissipation Junction temperature Storage temperature range DC Pulsed Symbol VCBO VCEO VEBO IC ICP PC (Note1) Tj Tstg Rating 15 10.
