2SC5784 NPN Transistor

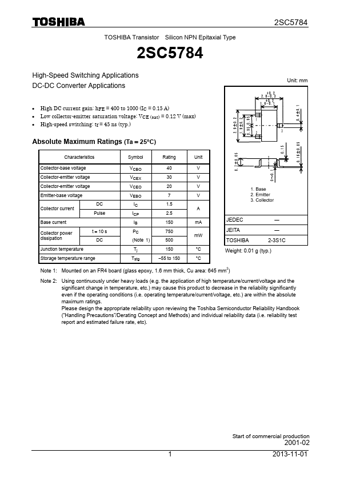

TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC5784 High-Speed Switching Applications DC-DC Converter Applications 2SC5784 Unit: mm High DC current gain: hFE = 400 to 1000 (IC = 0.15 A) Low collector-emitter saturation voltage: VCE (sat) = 0.12 V (max) High-speed switching: tf = 45 ns (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Collector-emitter voltage Emitter-base volt.
