2SC5785 Datasheet - Toshiba Semiconductor

2SC5785 NPN TRANSISTOR

2SC5785 TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC5785 High-Speed Switching Applications DC-DC Converter Applications Strobe Applications High DC current gain: hFE = 400 to 1000 (IC = 0.2 A) Low collector-emitter saturation voltage: VCE (sat) = 0.12 V (max) High-speed switching: tf = 25 ns (typ.) Industrial Applications Unit: mm Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector curren.

2SC5785_ToshibaSemiconductor.pdf

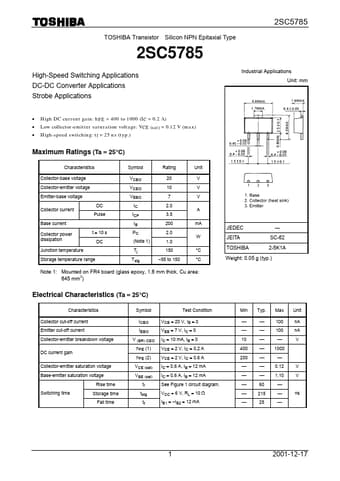

Preview of 2SC5785 PDF
2SC5785 Datasheet Preview Page 2 2SC5785 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC5785

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

182.91 KB

Description:

Npn transistor.
