2SD1430 Datasheet - Toshiba Semiconductor

2SD1430 Silicon NPN Transistor

J SILICON NPNTRIPLE DIFFUSED MESA TYPE . 2SD1 430 COLOR TV HORIZONTAL OUTPUT APP LICATIONS. FFATTJRFS . High Voltage : VCB0=1500V . Low Saturation Voltage : V C E(sat)=4V ( Typ.) (I C=3A, Ib=0.8A) . High Speed : tf=1.0AS (Max .) (I C P=3A, I B l(end)=0.8A) . Glass Passivated Collector-B ase Junction MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current SYMBOL VcBO VCEO VEBO ic RATING 1500 600 5 3.5 UNIT V .

2SD1430 Datasheet (45.01 KB)

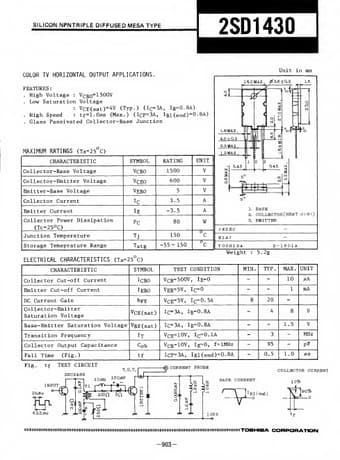

2SD1430 Datasheet Preview — Preview of 2SD1430 PDF

Datasheet Details

Part number:

2SD1430

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

45.01 KB

Description:

Silicon npn transistor.
