K2543 Datasheet - Toshiba Semiconductor

K2543 2SK2543

2SK2543 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2543 Switching Regulator Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.75 Ω (typ.) z High forward transfer admittance : |Yfs| = 7.0 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 500 V) z Enhancement mode : Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain source voltage .

K2543 Datasheet (410.82 KB)

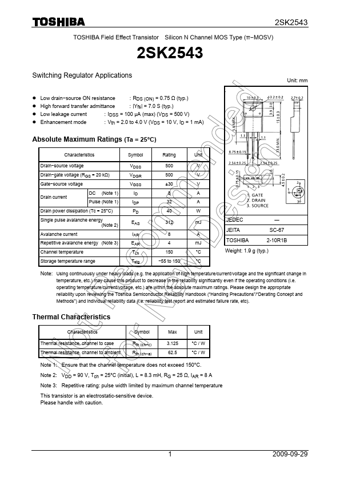

Preview of K2543 PDF

Datasheet Details

Part number:

K2543

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

410.82 KB

Description:

2sk2543.
