K2545 Datasheet - Toshiba Semiconductor

K2545 (2SK2545) N-Channel MOSFET

2SK2545 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2545 DC DC Converter, Relay Drive and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.9 Ω(typ.) z High forward transfer admittance : |Yfs| = 5.5 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 600 V) z Enhancement mode : Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit .

K2545 Datasheet (412.72 KB)

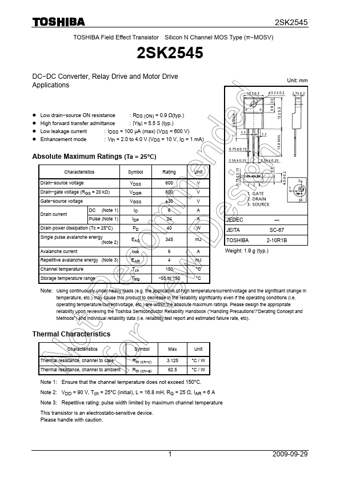

Preview of K2545 PDF

Datasheet Details

Part number:

K2545

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

412.72 KB

Description:

(2sk2545) n-channel mosfet.
