TPCA8104 Datasheet - Toshiba Semiconductor

TPCA8104 Silicon P-Channel MOSFET

TPCA8104 TOSHIBA Field Effect Transistor Silicon P-Channel MOS Type (U-MOS III) TPCA8104 High-Side Switching Applications Portable Equipment Applications Small footprint due to small and thin package Low drain-source ON-resistance: RDS (ON) = 11 mΩ (typ.) High forward transfer admittance:|Yfs| = 50 S (typ.) Low leakage current: IDSS = -10 μA (max) (VDS = -60 V) Enhancement mode: Vth = -0.8 to -2.0 V (VDS = -10 V, ID = -1 mA) 0.5±0.1 1.27 8 0.4.

TPCA8104_ToshibaSemiconductor.pdf

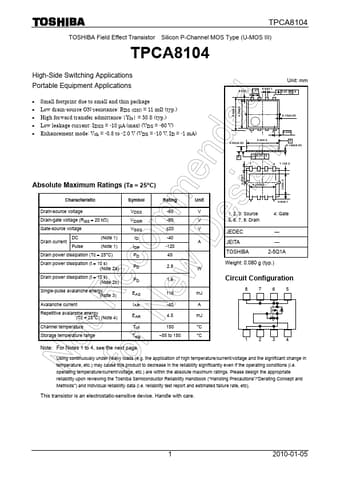

Preview of TPCA8104 PDF
TPCA8104 Datasheet Preview Page 2 TPCA8104 Datasheet Preview Page 3

Datasheet Details

Part number:

TPCA8104

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

221.66 KB

Description:

Silicon p-channel mosfet.
