TPCA8121 Datasheet - Toshiba

TPCA8121 Field Effect Transistor

TPCA8121 Features

* (1) (2) (3) (4) Small, thin package Low drain-source on-resistance: RDS(ON) = 2.4 mΩ (typ.) (VGS = -10 V) Low leakage current: IDSS = -10 µA (max) (VDS = -30 V) Enhancement mode: Vth = -0.8 to -2.0 V (VDS = -10 V, ID = -1 mA) 3. Packaging and Internal Circuit 1, 2, 3: Source 5, 6, 7, 8: Drain 4:

TPCA8121 Datasheet (256.48 KB)

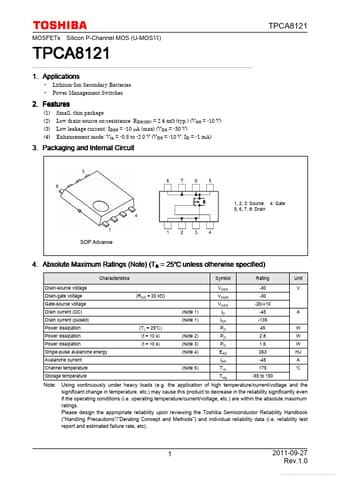

Preview of TPCA8121 PDF

Datasheet Details

Part number:

TPCA8121

Manufacturer:

Toshiba ↗

File Size:

256.48 KB

Description:

Field effect transistor.
