TPCP8207 - Silicon N-Channel MOSFET

Name: TPCP8207
SKU: TPCP8207-835732

Toshiba Semiconductor

The TPCP8207 by Toshiba Semiconductor is a Silicon N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TPCP8207
Manufacturer	Toshiba Semiconductor
File Size	266.48 KB
Description	Silicon N-Channel MOSFET
Datasheet	TPCP8207-ToshibaSemiconductor.pdf

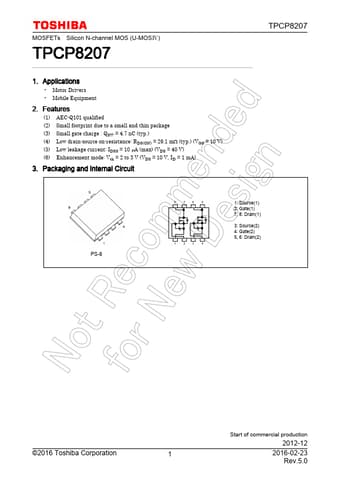

Additional preview pages of the TPCP8207 datasheet.

(1) AEC-Q101 qualified (2) Small footprint due to a small and thin package (3) Small gate charge : QSW = 4.7 nC (typ. ) (4) Low drain-source on-resistance: RDS(ON) = 29.1 mΩ (typ. ) (VGS = 10 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 40 V) (6) Enhancement mode: Vth = 2 to 3 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit TPCP8207 PS-8 1: Source(1) 2: Gate(1) 7, 8: Drain(1) 3: Source(2) 4: Gate(2) 5, 6: Drain(2) ©2016 Toshiba Corporation 1 Start of commercial productio.
