2SD525 Datasheet - Toshiba

2SD525, NPN Transistor

SILICON NPN TRIPLE DIFFUSED TYPE POWER AMPLIFIER APPLICATIONS..

2SD525-Toshiba.pdf

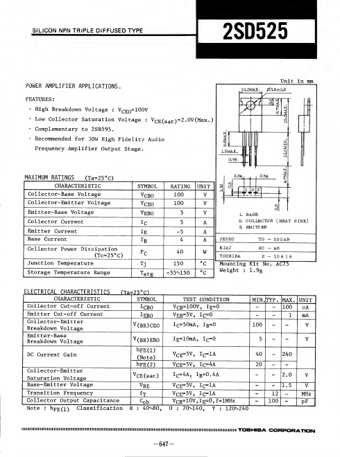

2SD525 Datasheet Preview — Preview of 2SD525 PDF

Datasheet Details

Part number:

2SD525

Manufacturer:

Toshiba ↗

File Size:

82.96 KB

Description:

NPN Transistor

Features

* High Breakdown Voltage : VCEO=100V
* Low Collector Saturation Voltage : VCE ( sat )=2.0V(Max.
* Complementary to 2SB595.
* Recommended for 30W High Fidelity Audio Frequency Amplifier Output Stage. Unit in mm 10.3MAX. ^3.6±0.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERIST
