TH58BVG3S0HBAI6 Datasheet - Toshiba

TH58BVG3S0HBAI6 8G-BIT (1G x 8 BIT) CMOS NAND E2PROM

The TH58BVG3S0HBAI6 is a single 3.3V 8 Gbit (8,858,370,048 bits) NAND Electrically Erasable and Programmable Read-Only Memory (NAND E2PROM) organized as (4096 + 128) bytes × 64 pages × 4096blocks. The device has a 4224-byte static register which allows program and read data to be transferred between.

TH58BVG3S0HBAI6 Features

* Organization x8 Memory cell array 4224 × 128K × 8 × 2 Register 4224 × 8 Page size 4224 bytes Block size (256K + 8K) bytes

* Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy, Multi Page Read, Multi Page Program, Multi Block Erase, ECC Status R

TH58BVG3S0HBAI6-Toshiba.pdf

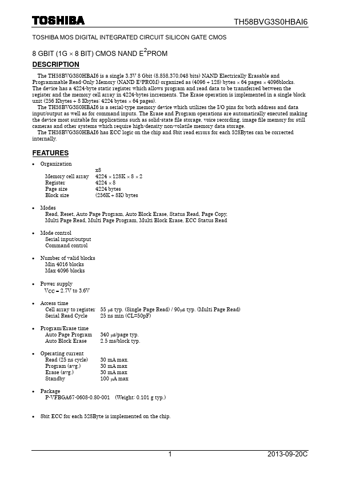

Preview of TH58BVG3S0HBAI6 PDF
TH58BVG3S0HBAI6 Datasheet Preview Page 2 TH58BVG3S0HBAI6 Datasheet Preview Page 3

Datasheet Details

Part number:

TH58BVG3S0HBAI6

Manufacturer:

Toshiba ↗

File Size:

697.68 KB

Description:

8g-bit (1g x 8 bit) cmos nand e2prom.
