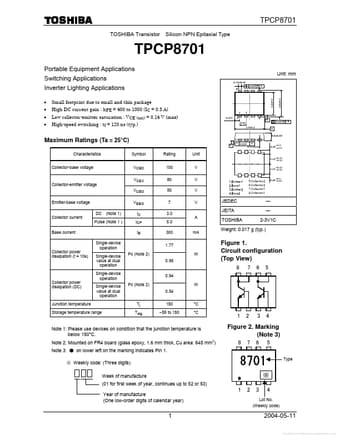

TPCP8701 TOSHIBA Transistor Silicon NPN Epitaxial Type TPCP8701 Portable Equipment Applications Switching Applications Inverter Lighting Applications Small footprint due to small and thin package High DC current gain : hFE = 400 to 1000 (IC = 0.3 A) Low collector-emitter saturation : VCE (sat) = 0.14 V (max) High-speed switching : tf = 120 ns (typ.) 0.475 1 4 Unit: mm 0.33±0.05 0.05 M A 8 5 2.4±0.1 B A 0.65 2.9±0.1 0.05 M B Maximum Ratings (Ta = 25°C.

TPCP8701 Datasheet (232.45 KB)

Preview of TPCP8701 PDF

Datasheet Details

Part number:

TPCP8701

Manufacturer:

Toshiba ↗

File Size:

232.45 KB

Description:

Field effect transistor.
