TGA1135B-SCC Datasheet, Amplifier, TriQuint Semiconductor

TGA1135B-SCC Features

  • Amplifier
  • TGA1135B-SCC 0.25 um pHEMT Technology 14 dB Nominal Gain at 23GHz 29 dBm Nominal P1dB 37dBm OTOI typical Typical 1

PDF File Details

Part number:

TGA1135B-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

0.96MB

Download:

📄 Datasheet

Description:

18-27 ghz 1w power amplifier. The TriQuint TGA1135B-SCC is a balanced twostage HPA MMIC design using TriQuint’s proven 0.25 um Power pHEMT process. The TGA11135B i

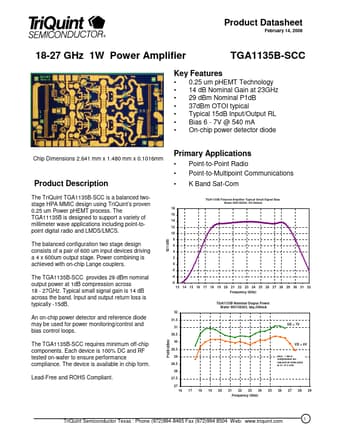

Datasheet Preview: TGA1135B-SCC 📥 Download PDF (0.96MB)
Page 2 of TGA1135B-SCC Page 3 of TGA1135B-SCC

TGA1135B-SCC Application

  • Applications
  • Point-to-Point Radio Point-to-Multipoint Communications K Band Sat-Com TGA1135B Fixtured Amplifier Typica

TAGS

TGA1135B-SCC
18-27
GHz
Power
Amplifier
TriQuint Semiconductor
