TGA1172-SCC Datasheet - TriQuint Semiconductor

TGA1172-SCC 27 - 32 GHz 1W Power Amplifier

The TriQuint TGA1172-SCC is a three stage HPA MMIC design using TriQuint’s proven 0.25 um Power pHEMT process. The TGA1172 is designed to support a variety of millimeter wave applications including point-to-point digital radio and LMDS/LMCS and Ka band satellite ground terminals. The three stage des.

TGA1172-SCC Features

* Chip Dimensions 2.7 mm x 1.4 mm x 0.1mm TGA1172-SCC 0.25 um pHEMT Technology 16 dB Nominal Gain 29 dBm Nominal P1dB 36dBm OTOI typical at 28GHz Nominal Input/Output RL < -10 dB Bias 6 - 7V @ 630 mA Primary Applications

TGA1172-SCC Datasheet (388.55 KB)

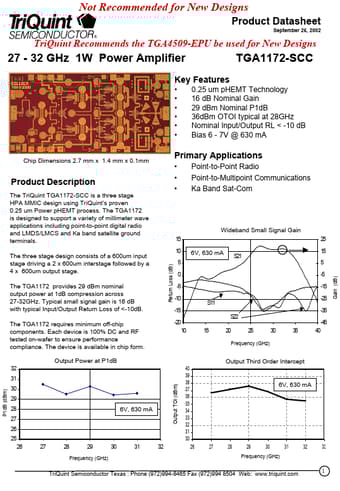

Preview of TGA1172-SCC PDF

Datasheet Details

Part number:

TGA1172-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

388.55 KB

Description:

27 - 32 ghz 1w power amplifier.
