TGA1152-SCC 13.75 - 15 GHz 2 Watt Power Amplifier

The TriQuint TGA1152-SCC MMIC is a 34dB gain, 2W, 13.75 * 15 GHz HPA, which is ideally suited for current KuBand satellite ground terminal applications. Utilizing TriQuint’s robust 0.5um power pHEMT process coupled with the latest High Density Interconnect (HDI) technology. The TGA1152-SCC p.

TGA1152-SCC Features

* TGA1152-SCC 0.5 um pHEMT Technology 34 dB Nominal Gain 33 dBm Nominal Pout @ Pin = 3 dBm OTOI 39dBm Typical Bias 7V @ 682 mA Chip Dimensions 1.390mm x 2.495mm Primary Applications

* Ku Band Sat-Com Point-to-Point Radio 30 Produc

TGA1152-SCC Datasheet (606.01 KB)

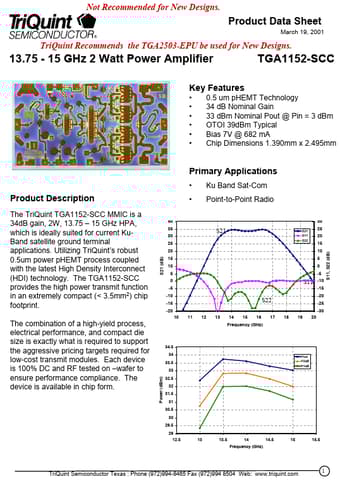

Preview of TGA1152-SCC PDF

Datasheet Details

Part number:

TGA1152-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

606.01 KB

Description:

13.75 - 15 ghz 2 watt power amplifier.
