TGA1141 Datasheet, Amplifier, TriQuint Semiconductor

TGA1141 Features

  • Amplifier
  • 0.25 um pHEMT Technology
  • 17 dB Nominal Gain
  • 31 dBm Pout @ P1dB,
  • Psat 33dBm @ 6V , 34dBm @7V
  • Bias 6 - 7V @ 1.5A Primary Applications

PDF File Details

Part number:

TGA1141

Manufacturer:

TriQuint Semiconductor

File Size:

518.12kb

Download:

📄 Datasheet

Description:

33-36 ghz 2w power amplifier. Performance Evaluation Fixtured with Flare TFNs 33 to 36 GHz > 17 dB nom, 34 - 35.2 GHz > 17 dB nom, 33 - 36 GHz ~ 5 dB nom, 34 - 35.

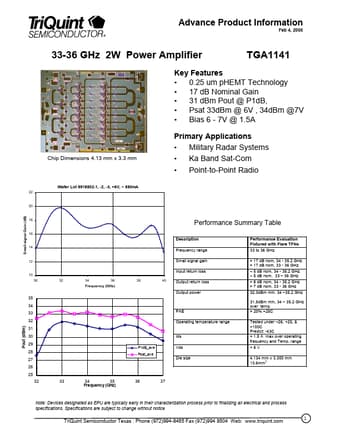

Datasheet Preview: TGA1141 📥 Download PDF (518.12kb)
Page 2 of TGA1141 Page 3 of TGA1141

TGA1141 Application

  • Applications
  • Military Radar Systems
  • Ka Band Sat-Com
  • Point-to-Point Radio Chip Dimensions 4.13 mm x 3.3 mm ( ) Wafer
