TGA1172 - 27 - 32 GHz 1W Power Amplifier

TGA1172 Description

Advance Product Information March 21, 2000 27 - 32 GHz 1W Power Amplifier TGA1172 Key .

TGA1172 Features

* 0.25 um pHEMT Technology
* 18 dB Gain at 28 GHz
* 29 dBm Nominal P1dB
* 37dBm OTOI typical at 28GHz
* Input/Output RL < -10 dB
* Bias 6 - 7V @ 630 mA Chip Dimensions 2.69 mm x 1.37 mm Small Signal Gain 15 10 Return g Loss (dB) ( ) 25 Primary Applic

TGA1172 Applications

* Point-to-Point Radio
* Point-to-Multipoint Communications
* Ka Band Sat-Com Vd1 Vg2 Vd2 Vg3 RF OUT Vd3 6V, 630 mA 5 0 -5 -10 -15 -20 10 15 S11 S21 15 5 Gain (dB) -5 -15 -25 S22 20 25 30 35 -35 -45 40 RF IN 600µm 1200µm 2400µm Vg1 Vd1 Vg2 Vd2 Vg3 Vd3 Amplifier T

📥 Download Datasheet

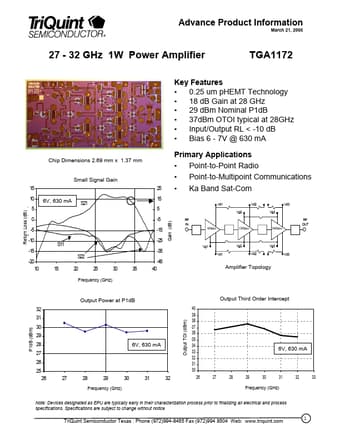

Preview of TGA1172 PDF
