DS54-0001

Low Cost Four-Way SMT Power Splitter/Combiner/ 824-960 MHz

DS54-0001 Features

* Small Size and Low Profile Industry Standard SOW-16 SMT Plastic Package Excellent Repeatability (Lot-to-Lot Variation) Typical Isolation: 23 dB Typical Amplitude Balance: 0.3 dB Low Cost Typical Insertion Loss: 1.0dB SOW-16 Desc

DS54-0001 General Description

M/A-COM’s DS54-0001is an IC-based monolithic power splitter/combiner in a low cost SOW-16 plastic package. This device is ideally suited for applications where PCB real estate is at a premium and standard packaging for automated assembly and low cost are critical. Typical applications include infras.

DS54-0001 Datasheet (37.88 KB)

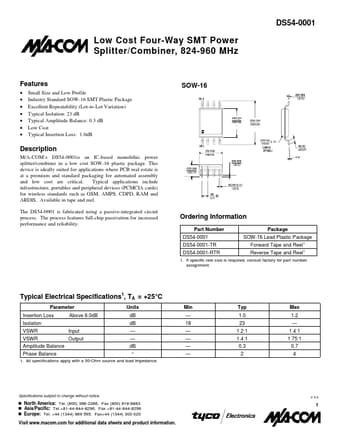

Preview of DS54-0001 PDF

Datasheet Details

Part number:

DS54-0001

Manufacturer:

Tyco Electronics

File Size:

37.88 KB

Description:

Low cost four-way smt power splitter/combiner/ 824-960 mhz.
