DS54-0002

Low Cost Four-Way SMT Power Splitter/ Combiner 1700-2000 MHz

DS54-0002 Features

* Small Size and Low Profile Industry Standard SOW-16 SMT Plastic Package Excellent Repeatability (Lot-to-Lot Variation) Typical Isolation: 17 dB Typical Amplitude Balance: 0.7dB Low Cost Typical Insertion Loss: 1.5dB DS54-0002 De

DS54-0002 General Description

M/A-COM’s DS54-0002 is an IC-based monolithic power splitter/ combiner in a low cost SOW-16 plastic package. This device is ideally suited for applications where PCB real estate is at a premium and standard packaging for automated assembly and low cost are critical. Typical applications include infr.

DS54-0002 Datasheet (58.35 KB)

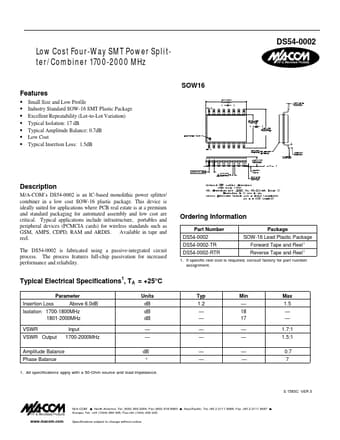

Preview of DS54-0002 PDF

Datasheet Details

Part number:

DS54-0002

Manufacturer:

Tyco Electronics

File Size:

58.35 KB

Description:

Low cost four-way smt power splitter/ combiner 1700-2000 mhz.
