DS54-0003 Datasheet - Tyco Electronics

DS54-0003 Low Cost Four-way SMT Power Splitter/Combiner

M/A-COM’s DS54-0003 is an IC-based monolithic power splitter/combiner in a low cost SOW-16 plastic package. This device is ideally suited for applications where PCB real estate is at a premium and standard packaging for automated assembly and low cost are critical. T ypic al applications include inf.

DS54-0003 Features

* Low Cost Small Size and Low Profile Industry Standard SOW-16 SMT Plastic Package Excellent Repeatability (Lot-to-Lot Variation) Typical Isolation: 23 dB Typical Amplitude Balance: 0.3 dB Typical Insertion Loss: 1.0 dB Co

DS54-0003_TycoElectronics.pdf

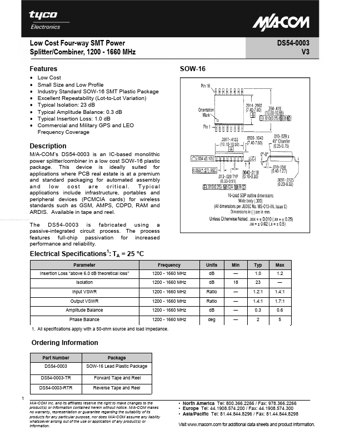

Preview of DS54-0003 PDF

Datasheet Details

Part number:

DS54-0003

Manufacturer:

Tyco Electronics

File Size:

137.54 KB

Description:

Low cost four-way smt power splitter/combiner.
