DS54-0005

Low Cost Four-Way GMIC SMT Power Divider 824 . 960 MHz

DS54-0005 Features

* Low Cost Small Size and Low Profile Industry Standard SOIC-8 SMT Plastic Package Superior Repeatability (Lot-to-Lot Variation) Typical Insertion Loss: 0.8 dB Typical Isolation: 24 dB Typical Amplitude Balance: 0.3 dB SOIC-8 Desc

DS54-0005 General Description

M/A-COM’s DS54-0005 is an IC-based monolithic power divider using M/A-COM’s GMIC technology in a low cost SOIC-8 plastic package. This 4-way power divider is ideally suited for applications where PCB real estate is at a premium and standard packaging for automated assembly and low cost are critical..

DS54-0005 Datasheet (45.61 KB)

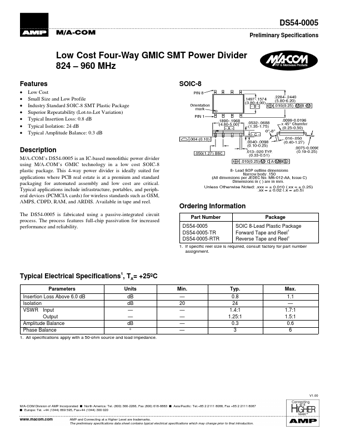

Preview of DS54-0005 PDF

Datasheet Details

Part number:

DS54-0005

Manufacturer:

Tyco Electronics

File Size:

45.61 KB

Description:

Low cost four-way gmic smt power divider 824 . 960 mhz.
Low Cost Three-Way GMIC SMT Power Divider DS54-0005 DS54-0005 Preliminary Specifications Low Cost Four-Way GMIC SMT Power Divider 824

* 960.
