FDN352AP - -30V P-ChanneI MOSFET

FDN352AP Datasheet Preview — Preview of FDN352AP PDF

Datasheet Details

Part number	FDN352AP
Manufacturer	UMW
File Size	753.80 KB
Description	-30V P-ChanneI MOSFET
Datasheet	FDN352AP-UMW.pdf

FDN352AP Product details

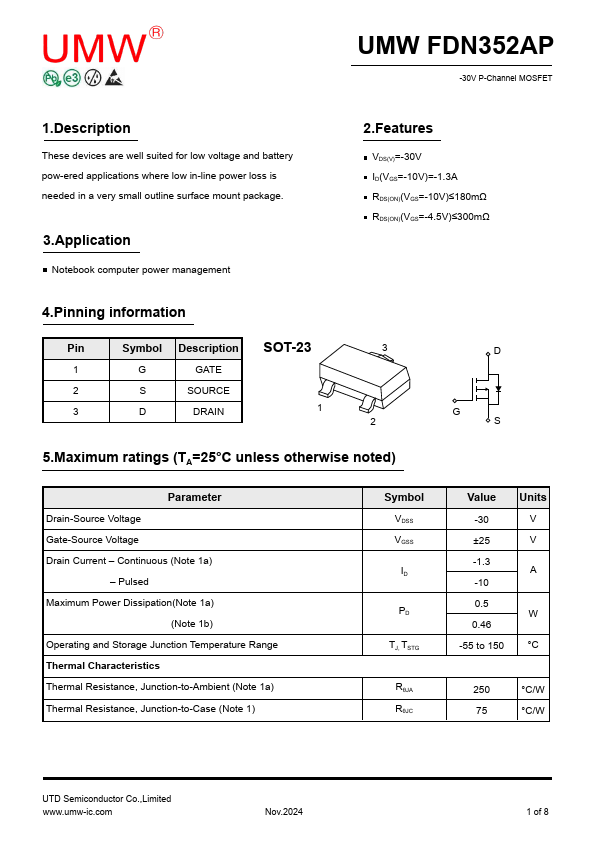

Description

These devices are well suited for low voltage and battery pow-ered applications where low in-line power loss is needed in a very small outline surface mount package.

Features

VDS(V)=-30V ID(VGS=-10V)=-1.3A RDS(ON)(VGS=-10V)≤180mΩ RDS(ON)(VGS=-4.5V)≤300mΩ 4.Pinning information Pin Symbol.
