FDN302P - P-Channel MOSFET

Datasheet Summary

Description

This P-Channel 2.5V specified MOSFET uses a rugged gate version of Fairchild’s advanced PowerTrench process.

12V).

Features

  • 20 V,.
  • 2.4 A. RDS(ON) = 0.055 Ω @ VGS =.
  • 4.5 V RDS(ON) = 0.080 Ω @ VGS =.
  • 2.5 V.
  • Fast switching speed.
  • High performance trench technology for extremely low RDS(ON).
  • SuperSOTTM -3 provides low RDS(ON) and 30% higher power handling capability than SOT23 in the same footprint.

📥 Download Datasheet

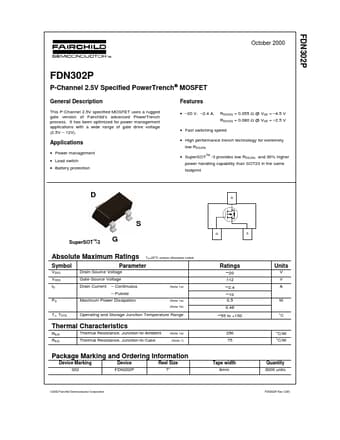

Datasheet preview – FDN302P

Datasheet Details

Part number FDN302P
Manufacturer Fairchild Semiconductor
File Size 103.44 KB
Description P-Channel MOSFET
Datasheet download datasheet FDN302P Datasheet
Additional preview pages of the FDN302P datasheet.

📁 Similar Datasheet

  • FDN302P - P-Channel MOSFET (ON Semiconductor)
  • FDN302P - P-ChanneI MOSFET (UMW)
  • FDN304P - P-Channel MOSFET (Kexin)
  • FDN304P - P-Channel MOSFET (ON Semiconductor)
  • FDN304PZ - P-Channel MOSFET (ON Semiconductor)
  • FDN306P - P-Channel MOSFET (ON Semiconductor)
  • FDN308P - P-Channel MOSFET (ON Semiconductor)
  • FDN327N - N-Channel MOSFET (ON Semiconductor)
  • FDN335N - N-Channel MOSFET (ON Semiconductor)
  • FDN336P - P-Channel MOSFET (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
FDN302P October 2000 FDN302P P-Channel 2.5V Specified PowerTrench MOSFET General Description This P-Channel 2.5V specified MOSFET uses a rugged gate version of Fairchild’s advanced PowerTrench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V – 12V). Features • –20 V, –2.4 A. RDS(ON) = 0.055 Ω @ VGS = –4.5 V RDS(ON) = 0.080 Ω @ VGS = –2.
