FDN327N - N-Channel MOSFET

Datasheet Summary

Description

This 20V N-Channel MOSFET uses Fairchild’s high voltage PowerTrench process.

It has been optimized for power management applications.

Features

2 A, 20 V. RDS(ON) = 70 mΩ @ VGS = 4.5 V RDS(ON) = 80 mΩ @ VGS = 2.5 V RDS(ON) = 120 mΩ @ VGS = 1.8 V.
Low gate charge (4.5 nC typical).
Fast switching speed.
High performance trench technology for extremely low RDS(ON).

Datasheet Details

Part number	FDN327N
Manufacturer	Fairchild Semiconductor
File Size	84.80 KB
Description	N-Channel MOSFET
Datasheet	FDN327N Datasheet

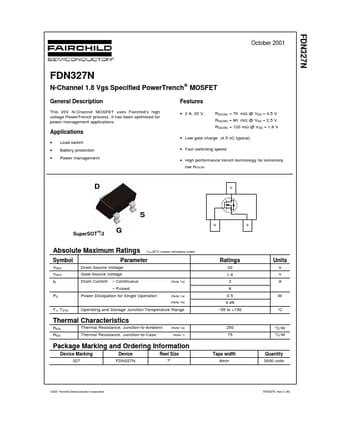

Additional preview pages of the FDN327N datasheet.
