FDN336P - single P-Channel MOSFET

Datasheet Summary

Description

This P-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

Features

  • -1.3 A, -20 V. RDS(ON) = 0.20 Ω @ VGS = -4.5 V RDS(ON) = 0.27 Ω @ VGS= -2.5 V. Low gate charge (3.6 nC typical). High performance trench technology for extremely low RDS(ON). High power version of industry standard SOT-23 package. Identical pin out to SOT-23 with 30% higher power handling capability. SOT-23 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 D D 6 33 S SuperSOT -3 TM G G S Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ,TSTG RθJA RθJC Parameter Drain-Source Voltage Gate.

📥 Download Datasheet

Datasheet preview – FDN336P

Datasheet Details

Part number FDN336P
Manufacturer Fairchild Semiconductor
File Size 67.53 KB
Description single P-Channel MOSFET
Datasheet download datasheet FDN336P Datasheet

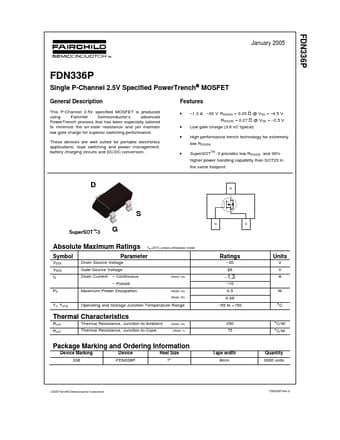

Additional preview pages of the FDN336P datasheet.

📁 Similar Datasheet

  • FDN336P - P-Channel MOSFET (ON Semiconductor)
  • FDN335N - N-Channel MOSFET (ON Semiconductor)
  • FDN337N - N-Channel MOSFET (ON Semiconductor)
  • FDN338 - FET (DCY)
  • FDN338P - P-Channel MOSFET (ON Semiconductor)
  • FDN339AN - N-Channel MOSFET (ON Semiconductor)
  • FDN302P - P-Channel MOSFET (ON Semiconductor)
  • FDN302P - P-ChanneI MOSFET (UMW)
  • FDN304P - P-Channel MOSFET (Kexin)
  • FDN304P - P-Channel MOSFET (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
November 1998 FDN336P Single P-Channel 2.5V Specified PowerTrenchTM MOSFET General Description This P-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance. These devices are well suited for portable electronics applications: load switching and power management, battery charging circuits, and DC/DC conversion. Features -1.3 A, -20 V. RDS(ON) = 0.20 Ω @ VGS = -4.5 V RDS(ON) = 0.27 Ω @ VGS= -2.5 V. Low gate charge (3.6 nC typical). High performance trench technology for extremely low RDS(ON). High power version of industry standard SOT-23 package.
