FDN304PZ - P-Channel MOSFET

Datasheet Summary

Description

This P

low voltage POWERTRECH process.

It has been optimized for battery power management applications.

Features

  • 20 V,.
  • 2.4 A RDS(on) = 52 mW @ VGS =.
  • 4.5 V RDS(on) = 70 mW @ VGS =.
  • 2.5 V RDS(on) = 100 mW @ VGS =.
  • 1.8 V.
  • Fast Switching Speed.
  • ESD Protection Diode.
  • High Performance Trench Technology for Extremely Low RDS(on).
  • SUPERSOTt.
  • 3 Provides Low RDS(on) and 30% Higher Power Handling Capability than SOT.
  • 23 in the Same Footprint.
  • This is a Pb.
  • Free and Halide Free Device.

📥 Download Datasheet

Datasheet preview – FDN304PZ

Datasheet Details

Part number FDN304PZ
Manufacturer ON Semiconductor
File Size 290.75 KB
Description P-Channel MOSFET
Datasheet download datasheet FDN304PZ Datasheet
Additional preview pages of the FDN304PZ datasheet.

📁 Similar Datasheet

  • FDN304PZ - P-Channel MOSFET (Fairchild Semiconductor)
  • FDN304P - P-Channel MOSFET (Fairchild Semiconductor)
  • FDN304P - P-Channel MOSFET (Kexin)
  • FDN302P - P-Channel MOSFET (Fairchild Semiconductor)
  • FDN302P - P-ChanneI MOSFET (UMW)
  • FDN306P - P-Channel MOSFET (Fairchild Semiconductor)
  • FDN308P - P-Channel MOSFET (Fairchild Semiconductor)
  • FDN327N - N-Channel MOSFET (Fairchild Semiconductor)
  • FDN335N - N-Channel MOSFET (Fairchild Semiconductor)
  • FDN336P - single P-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

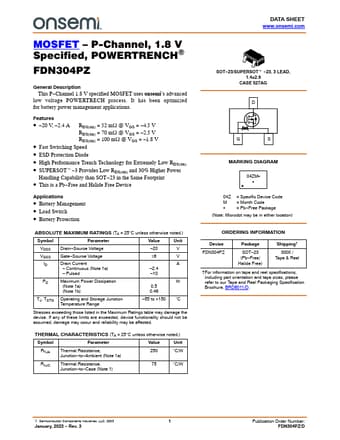

MOSFET – P-Channel, 1.8 V Specified, POWERTRENCH) FDN304PZ General Description This P−Channel 1.8 V specified MOSFET uses onsemi’s advanced low voltage POWERTRECH process. It has been optimized for battery power management applications. Features • –20 V, –2.4 A RDS(on) = 52 mW @ VGS = –4.5 V RDS(on) = 70 mW @ VGS = –2.5 V RDS(on) = 100 mW @ VGS = –1.8 V • Fast Switching Speed • ESD Protection Diode • High Performance Trench Technology for Extremely Low RDS(on) • SUPERSOTt−3 Provides Low RDS(on) and 30% Higher Power Handling Capability than SOT−23 in the Same Footprint • This is a Pb−Free and Halide Free Device Applications • Battery Management • Load Switch • Battery Protection ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted.
