FDN337N - N-Channel MOSFET

Fairchild Semiconductor

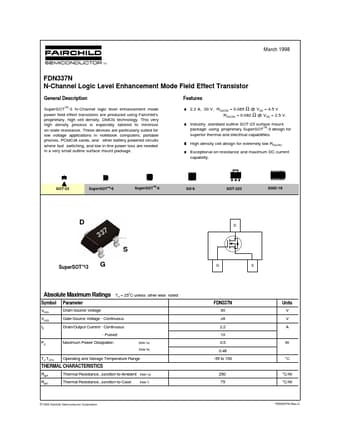

FDN337N Datasheet Preview — Preview of FDN337N PDF

Datasheet Details

Part number	FDN337N
Manufacturer	Fairchild Semiconductor
File Size	270.42 KB
Description	N-Channel MOSFET
Datasheet	FDN337N_FairchildSemiconductor.pdf

FDN337N Product details

Description

SuperSOT -3 N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

Features

2.2 A, 30 V, RDS(ON) = 0.065 Ω @ VGS = 4.5 V RDS(ON) = 0.082 Ω @ VGS = 2.5 V. Industry standard outline SOT-23 surface mount package using proprietary SuperSOTTM-3 design for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. SOT-23 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 D D 3 37 S SuperSOT -3 TM G G S Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ,TSTG RθJA RθJ.
