P5015ATF N-Channel MOSFET

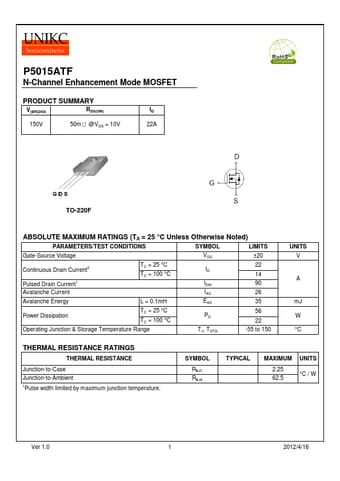

P5015ATF N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 150V 50mΩ @VGS = 10V 22A TO-220F ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current2 Pulsed Drain Current1 TC = 25 °C ID 22 TC = 100 °C 14 IDM 90 Avalanche Current IAS 26 Avalanche Energy L = 0.1mH EAS 35 Power Dissipation TC = 25 °C PD 56 TC = 100 °C 22 Operating Junction & Stor.

P5015ATF Datasheet (323.52 KB)
