P5504EDG P-Channel MOSFET

P5504EDG P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -40V 55mΩ @VGS = -10V ID -21A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -40 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID IDM -21 -13 -39 Power Dissipation TC = 25 °C TC = 100 °C PD 41 16 Operating Junction & Storage Temperature Range TJ, TSTG -55 to .

P5504EDG-UNIKC.pdf

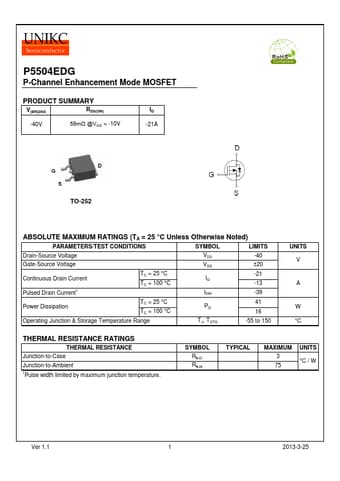

Preview of P5504EDG PDF
P5504EDG Datasheet Preview Page 2 P5504EDG Datasheet Preview Page 3

Datasheet Details

Part number:

P5504EDG

Manufacturer:

UNIKC

File Size:

467.08 KB

Description:

P-channel mosfet.
