P5506BDG N-Channel MOSFET

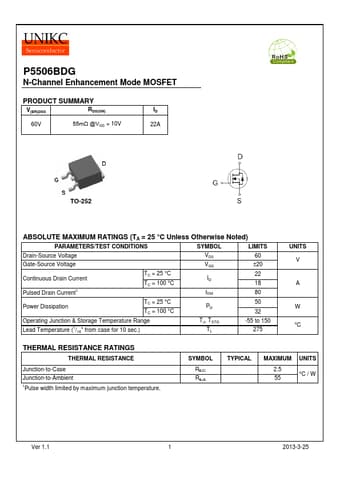

P5506BDG N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 60V 55mΩ @VGS = 10V ID 22A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 60 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID IDM 22 18 80 Power Dissipation TC = 25 °C TC = 100 °C PD 50 32 Operating Junction & Storage Temperature Range Lead Temperature (1/16" fr.
