24NM65 - N-CHANNEL MOSFET

Description

The UTC 24NM65 is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics.

This power MOSFET is usually used at AC-DC converters for power applications.

Features

  • S.
  • RDS(ON) ≤ 0.16 Ω @ VGS=10V, ID=12A.
  • High Switching Speed.
  • 100% Avalanche Tested.
  • SYMBOL 2.Drain 1 TO-220 1 TO-220F 1 TO-220F1 1 TO-220F2 1 TO-247 1 TO-262 1 TO-247S 1 TO-263 1.Gate 3.Source.

📥 Download Datasheet

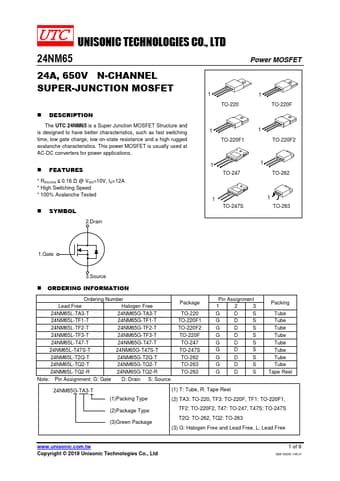

Datasheet preview – 24NM65
