2N60 N-CHANNEL MOSFET

2N60 Description

UNISONIC TECHNOLOGIES CO., LTD 2N60 2.0A, 600V N-CHANNEL POWER MOSFET * .
The UTC 2N60 is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state.

2N60 Features

* RDS(ON) ≤ 5.0 Ω @ VGS = 10V, ID =1.0A
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability, high ruggedness Power MOSFET
* SYMBOL www. unisonic. com. tw Copyright © 2021 Unisonic Technologies Co. , Ltd 1 of 7 QW-R502-053.AB 2N60 Power MOSFET

2N60 Applications

* in power supplies, PWM motor controls, high efficient AC to DC converters and bridge circuits.

📥 Download Datasheet

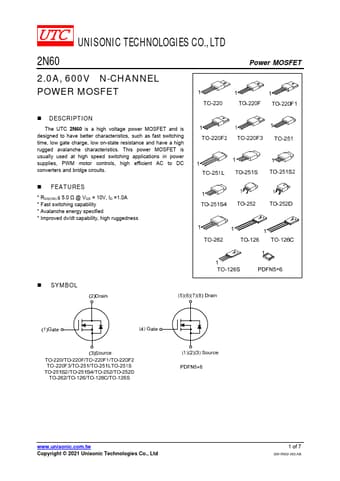

Preview of 2N60 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N60
Manufacturer
UTC
File Size
273.38 KB
Datasheet
2N60_UTC.pdf
Description
N-CHANNEL MOSFET
