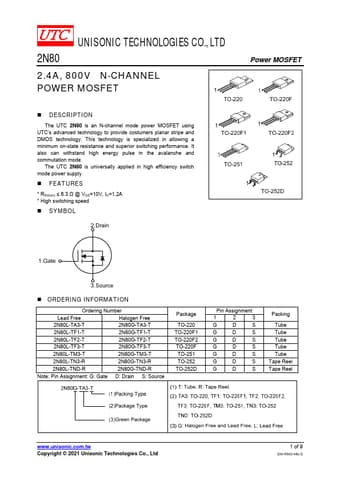

2N80 Datasheet, Mosfet, Unisonic Technologies

✔ 2N80 Features

RDS(on) ≤ 6.3 Ω @ VGS=10V, ID=1.2A
High switching speed
SYMBOL Power MOSFET
ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2N80L-TA3-T 2N80G-T

PDF File Details

Unisonic Technologies manufacturer logo

Part number:

2N80

Manufacturer:

Unisonic Technologies

File Size:

627.00kb

Download:

📄 Datasheet

Description:

800v n-channel power mosfet. The UTC 2N80 is an N-channel mode power MOSFET using UTC’s advanced technology to provide costumers planar stripe and DMOS technology

📥 Download PDF (627.00kb)
