2N828A - PNP germanium epitaxial mesa transistors

2N828A Description

2N828 (continued) ELECTRICAL CHARACTERISTICS (continued) Characteristic DYNAMIC.CHAI!ACTERISTICS Symbol Min Typ Current-Gain ,.Bandwldth Product (.

2N828A Applications

* Rating Collector to Base Voltage Symbol Value Unit Vce 15 Vdc Collector to Emitter Voltage VCES 15 Vdc Emitter to Base Voltage VEB 2.5 Vdc Collector Current (ContinUous) IC 200 mAdc Total Device Dissipation at 25"C case PD 300 mW Temperature (Derate 4. Omw;oC above 25
* C)

📥 Download Datasheet

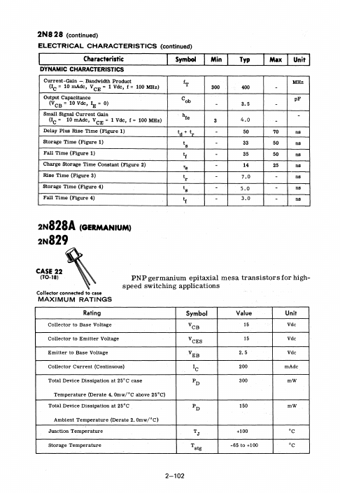

Preview of 2N828A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N828A
Manufacturer
Motorola
File Size
189.52 KB
Datasheet
2N828A-Motorola.pdf
Description
PNP germanium epitaxial mesa transistors
