2N828 - PNP germanium epitaxial mesa transistor

2N828 Description

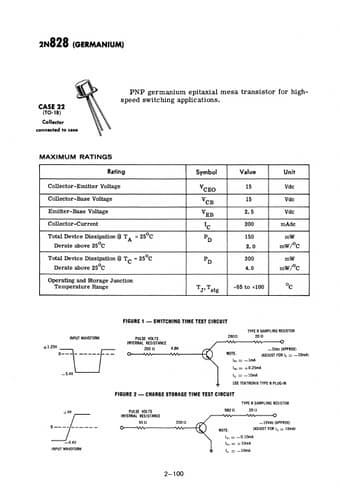

2N828 (GERMANIUM) CASE 22 (TO *1S) Collector connected to cas.PNP germanium epitaxial mesa transistor for highspeed switching applications.MAX.

2N828 Applications

* MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector-Current Total Device Dissipation @ TA =25°C Derate above 25°C Total Device Dissiopation @ TC =25°C . Derate above 25 C Operating and Storage Junction Temperature Range Symbol VCEO VCB VEB IC PD
